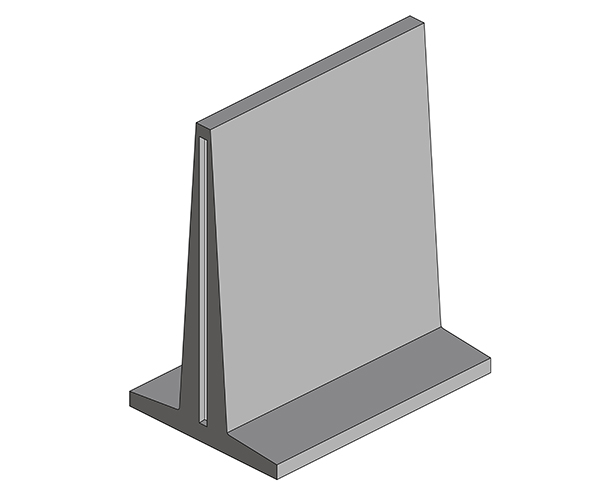

El. Super H. 2,72 m
Silos Elements
![](https://www.edilleca.com/wp-content/uploads/2019/06/Divisorio_Super_272x225_Sito_600x490.jpg)
EDIL Leca’s Horizontal Silos are series productions declared in accordance with the guidelines of the Ministerial Decree of 17/01/2018 registered with the “Presidenza del Consiglio Superiore dei LL.PP.” (Presidency of the Upper Council for Public Works) and manufactured with:
- low water/cement ratio.
- high mechanical strenght.
- high protection of reinforcements.
- extremely low chlorides content.
- high exposure class.
they are subject to checks in accordance with the law and ensure greater durability over time.
Dividing element sizes: cm
Height | Lenght | Width |
---|---|---|
272 | 225 | 155 |
272 | 150 | 155 |
272 | 225 | 104 1 |
272 | 150 | 104 1 |
1 - Element with 1 foot
Corner dividing element size: cm
Height | Lenght | Width |
---|---|---|
272 | 225 | 155 |
272 | 225 | 104 1 |
1 - Element with 1 foot
Final element size: cm
Height | Lenght | Width |
---|---|---|
272 1 | 225 | 155 |
166 2 | 225 | 155 |
272 1 | 225 | 104 3 |
166 2 | 225 | 104 3 |
1 - Large final element
2 - Small final element
3 - Element with 1 foot
Technical specifications:
Load conditions | Normal type | Normal type | Reinforced type | |
---|---|---|---|---|
Specific weight | Kg/m3 | 1000 | 1800 | 1800 |
Internal friction angle | degrees | 35° | 35° | 35° |
Pile inclination | degrees | 15° | 15° | 15° |
Overload | Kg/m2 | 1000 | nullo | 1000 |
Other types:
![](https://www.edilleca.com/wp-content/uploads/2019/06/Divisorio_Super_272x220_Angolo_Sito_700x700.jpg)

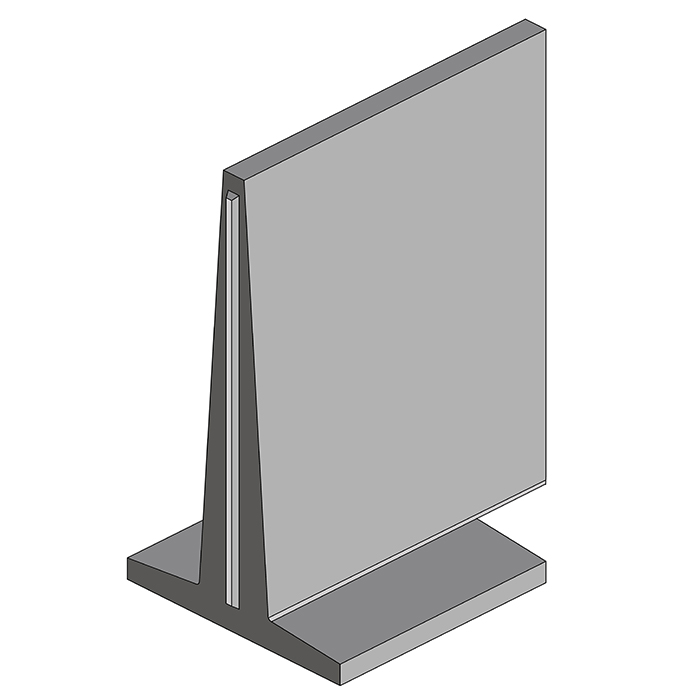

Corner dividing wall
![](https://www.edilleca.com/wp-content/uploads/2019/06/Divisorio_Super_272_Term_Grande_Sito_700x700.jpg)

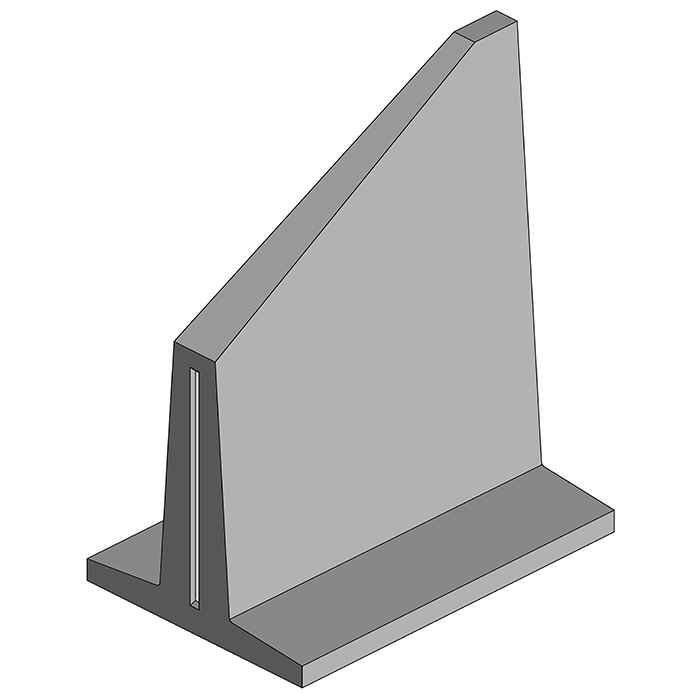

Dividing final large wall
![](https://www.edilleca.com/wp-content/uploads/2019/06/Divisorio_Super_272_Term_Piccolo_Sito_700x700.jpg)

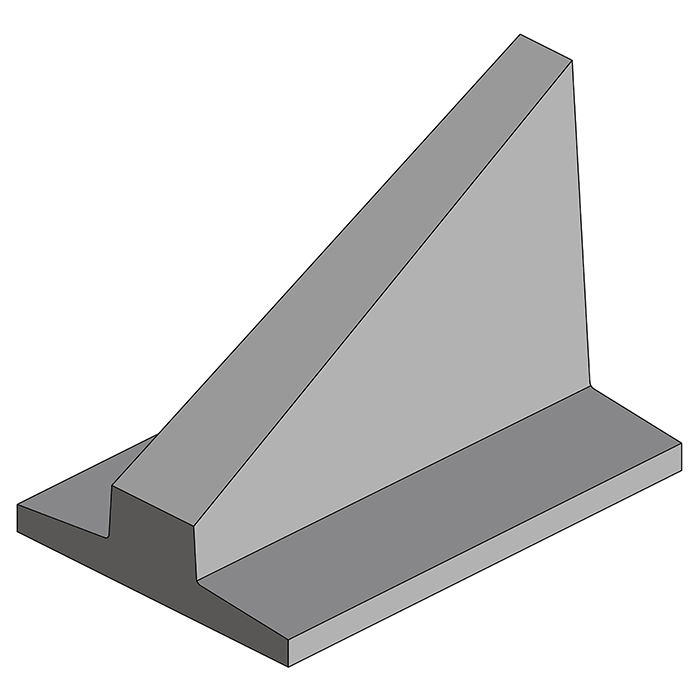

Dividing final small wall
![](https://www.edilleca.com/wp-content/uploads/2019/06/Divisorio_272x225_Super_1_Piede_Sito_700x700.jpg)

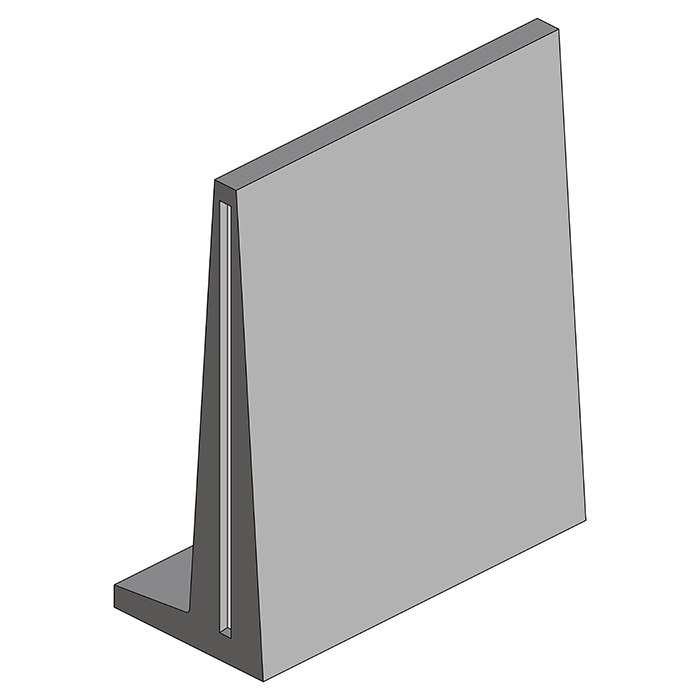

Dividing wall 1 foot
![](https://www.edilleca.com/wp-content/uploads/2019/06/Divisorio_272x225_Super_1_Piede_Angolo_DX_Sito_700x700.jpg)

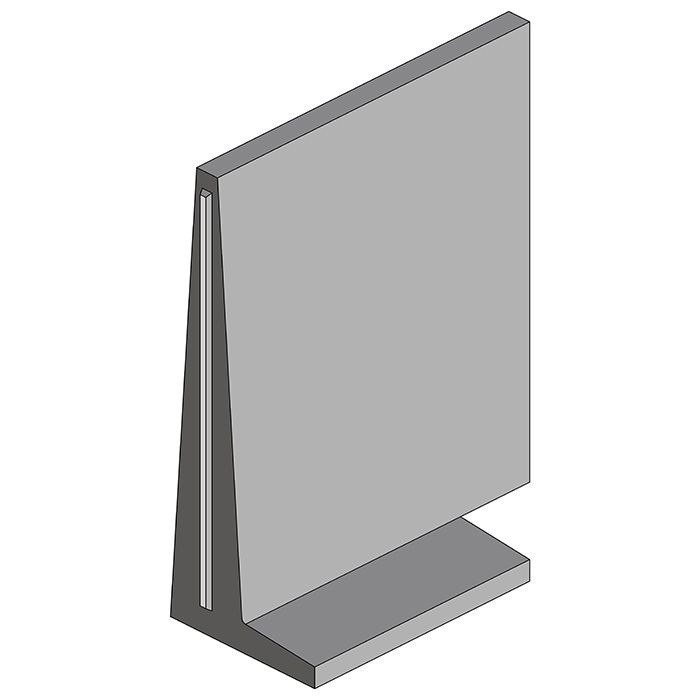

Corner dividing wall right 1 foot
![](https://www.edilleca.com/wp-content/uploads/2019/06/Divisorio_272x225_Super_1_Piede_Angolo_SX_Sito_700x700.jpg)

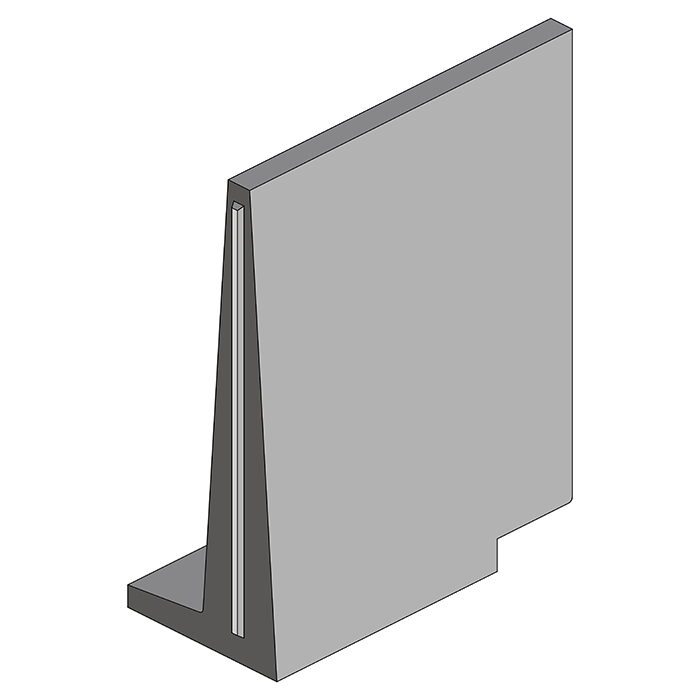

corner dividing wall left 1 foot
![](https://www.edilleca.com/wp-content/uploads/2019/06/Divisorio_272x225_Super_1_Piede_Term_Grande_DX_Sito_700x700.jpg)
Large final wall right 1 foot
![](https://www.edilleca.com/wp-content/uploads/2019/06/Divisorio_272x225_Super_1_Piede_Term_Piccolo_DX_Sito_700x700.jpg)
small final wall right 1 foot
![](https://www.edilleca.com/wp-content/uploads/2019/06/Divisorio_272x225_Super_1_Piede_Term_Grande_SX_Sito_700x700.jpg)
large final dividing wall left 1 foot
![](https://www.edilleca.com/wp-content/uploads/2019/06/Divisorio_272x225_Super_1_Piede_Term_Piccolo_SX_Sito_700x700.jpg)
