Element H.2,72 m

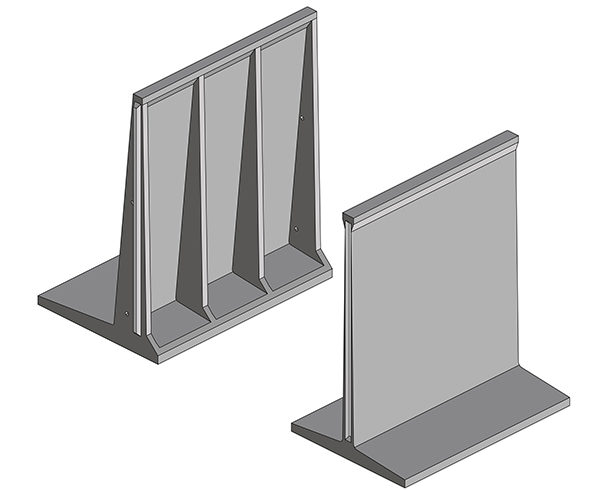

Silos Elements
EDIL Leca’s Horizontal Silos are series productions declared in accordance with the guidelines of the Ministerial Decree of 17/01/2018 registered with the “Presidenza del Consiglio Superiore dei LL.PP.” (Presidency of the Upper Council for Public Works) and manufactured with:
- low water/cement ratio.
- high mechanical strenght.
- high protection of reinforcements.
- extremely low chlorides content.
- high exposure class.
they are subject to checks in accordance with the law and ensure greater durability over time.
Element dividing sizes: cm
| Height | Lenght | Width |
|---|---|---|
| 272 | 225 | 155 |
| 272 | 150 | 155 |
| 272 1 | 155 | 15 |

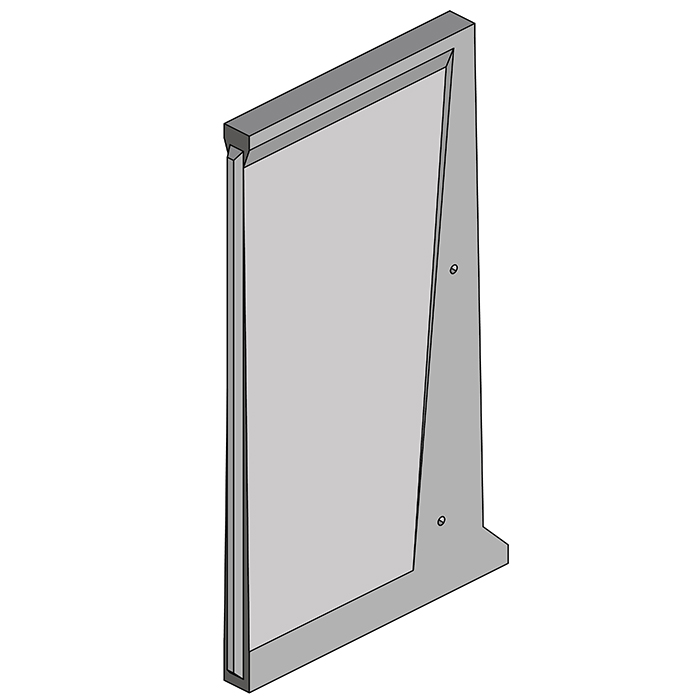

1 - Plate
Element perimetral sizes: cm
| Height | Lenght | Width |
|---|---|---|
| 272 | 225 | 155 |
| 272 | 150 | 155 |
| 272 1 | 310 | 155 |
1 - Corner
Final element size: cm
| Height | Lenght | Width |
|---|---|---|
| 272 1 | 150 | 155 |
| 196 2 | 300 | 155 |
1 - Large final element
2 - Small final element
Technical specifications:
| Load conditions | Normal type | Normal type | Reinforced type | |
|---|---|---|---|---|
| Specific weight | Kg/m3 | 1000 | 1800 | 1800 |
| Internal friction angle | degrees | 35° | 35° | 35° |
| Pile inclination | degrees | 15° | 15° | 15° |
| Overload | Kg/m2 | 1000 | null | 1000 |
Other types:

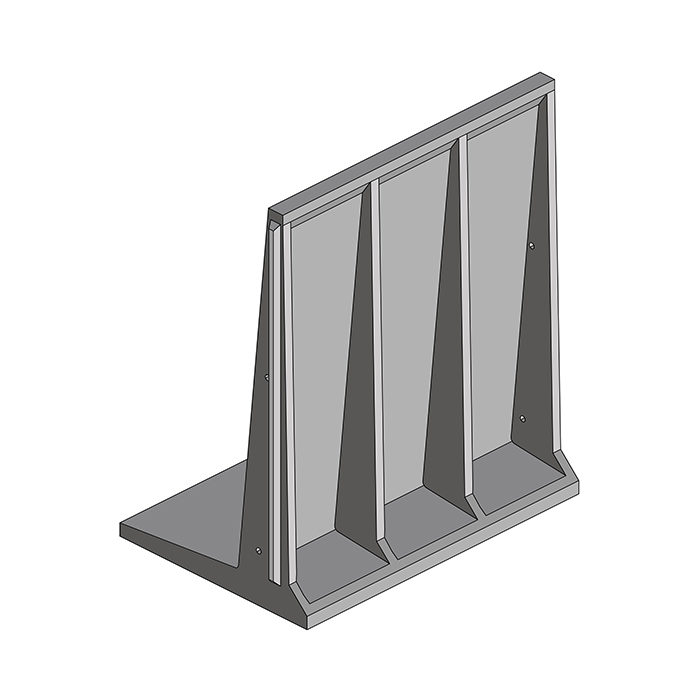

Perimeter wall 225

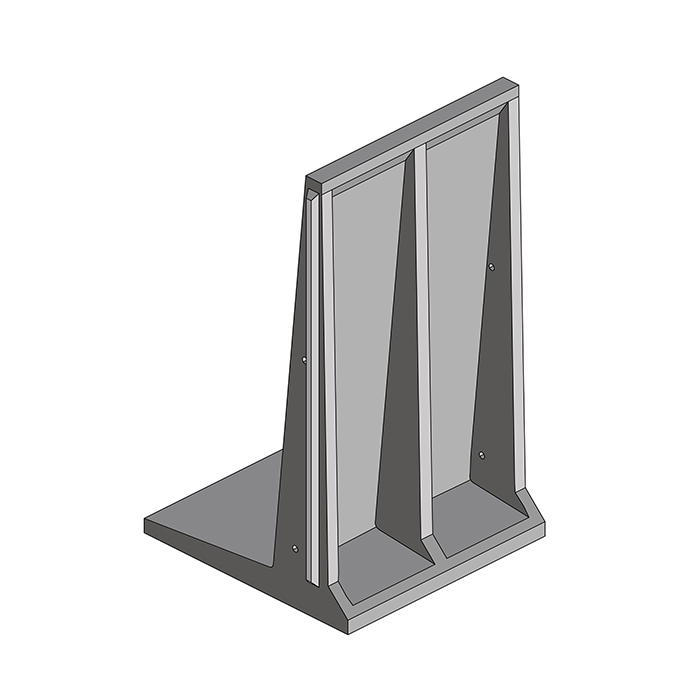

Perimeter wall 50

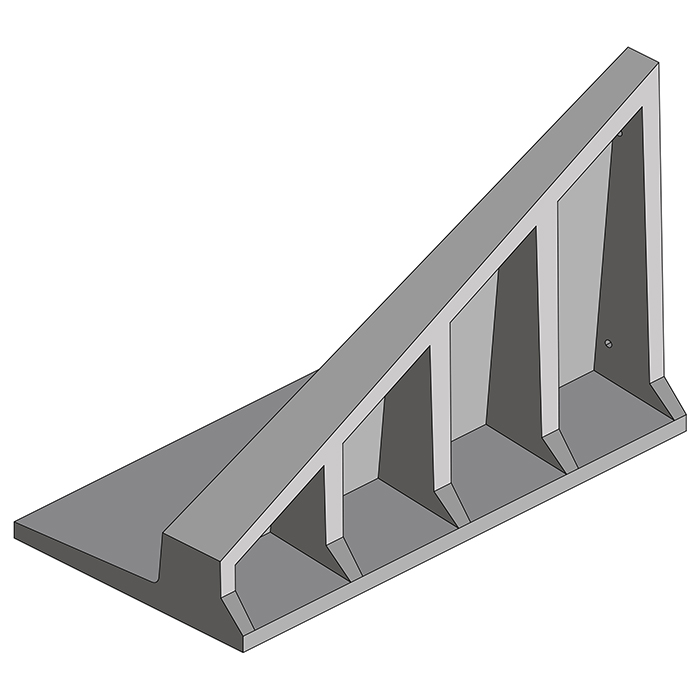

Right large final perimeter wall

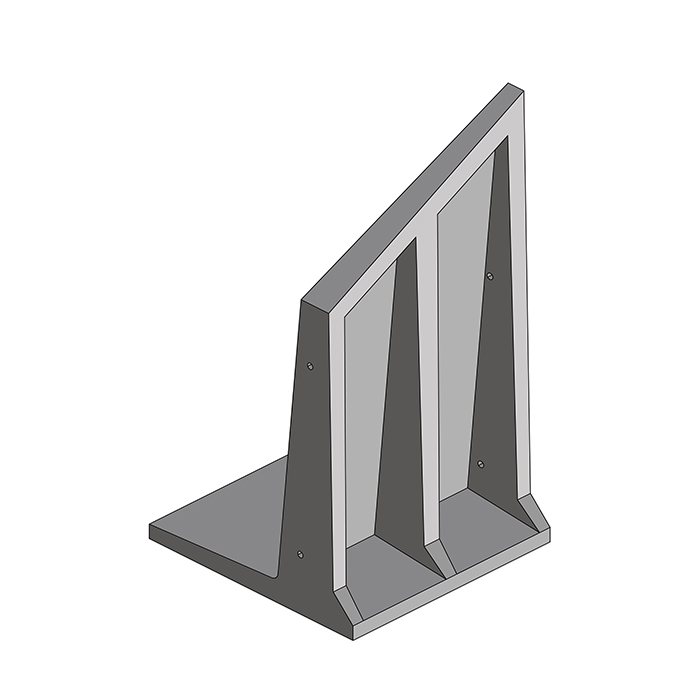

Right small final perimeter wall

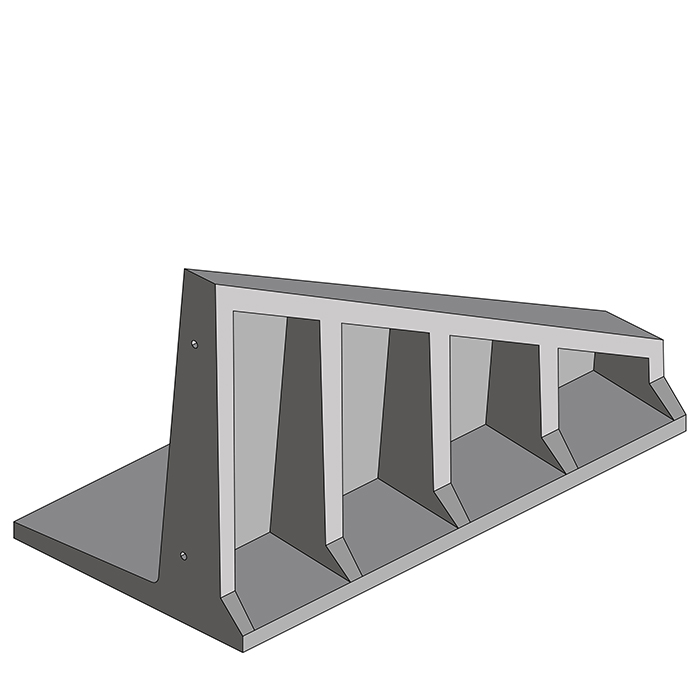

Left large final perimeter wall

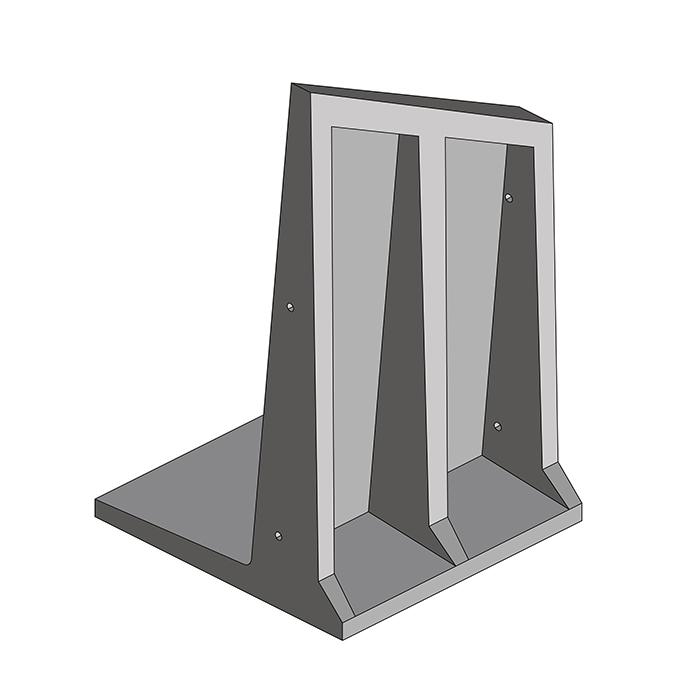

Left small final perimeter wall

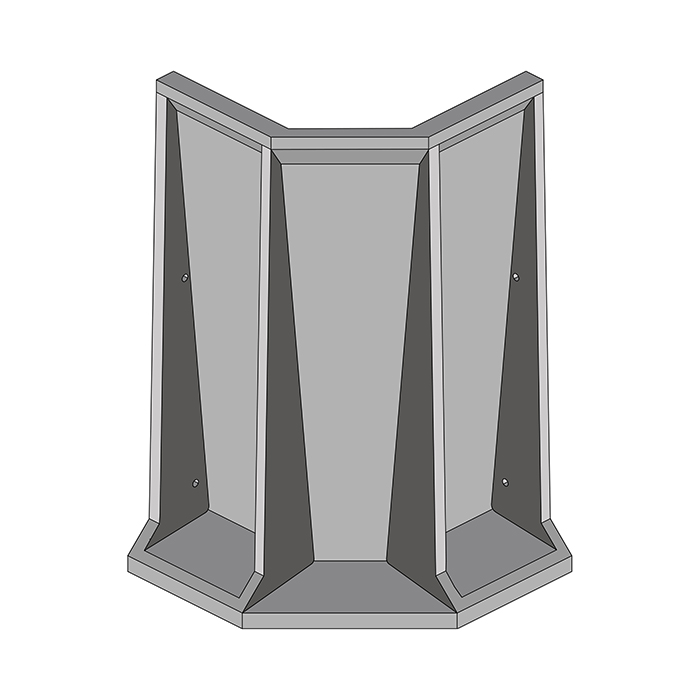

Perimeter corner

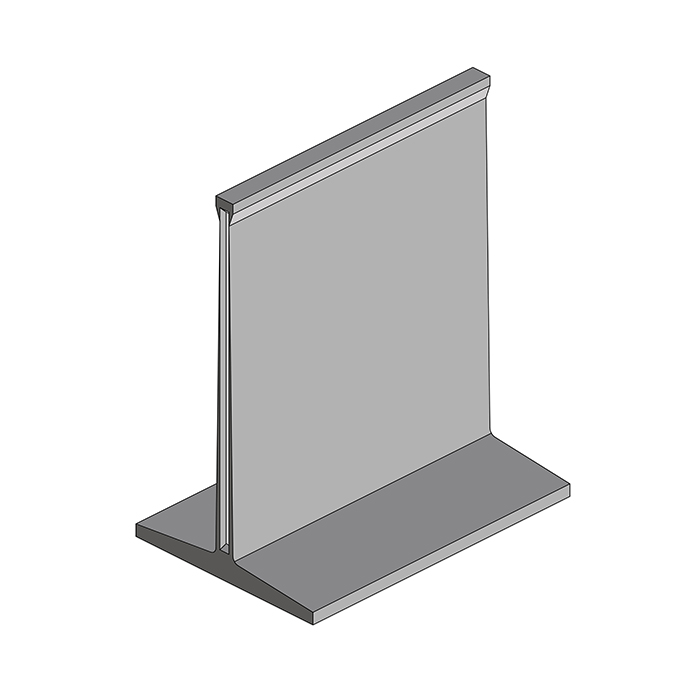

Dividing wall 225

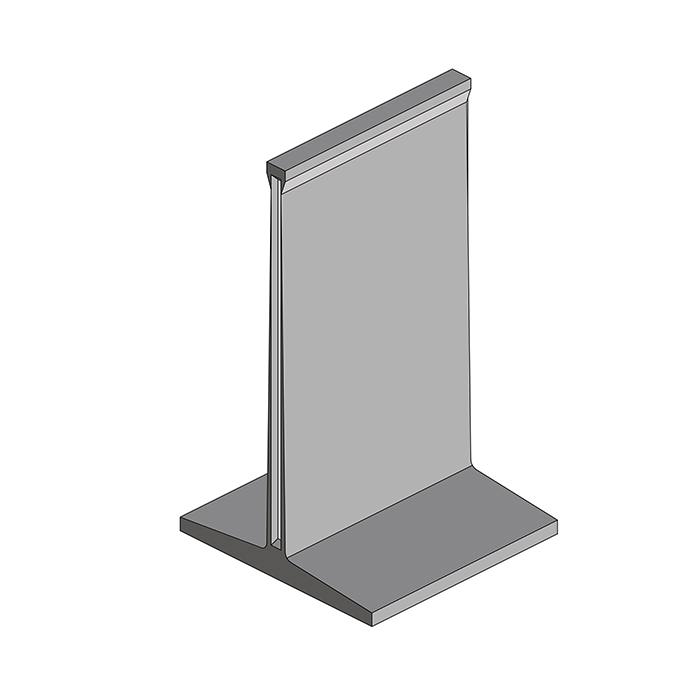

Dividing wall 150

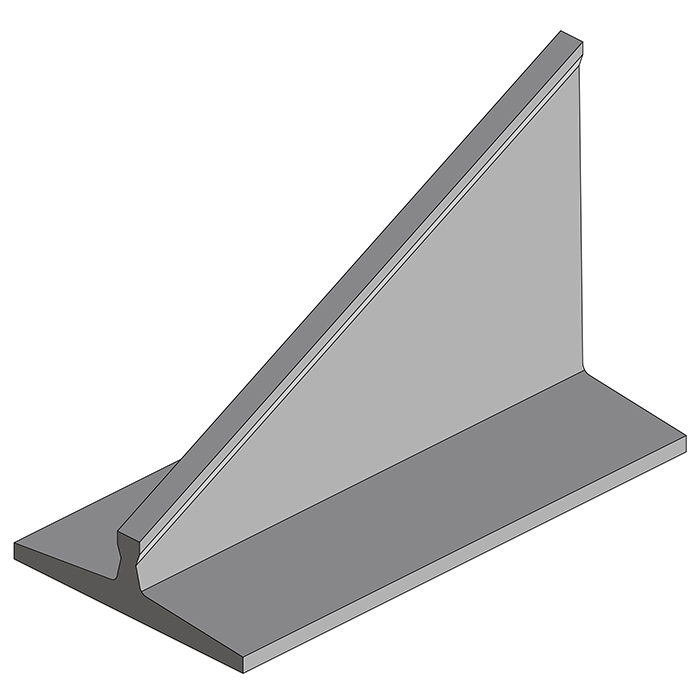

Large final dividing wall
Small final dividing wall
