Element H.3,50 m

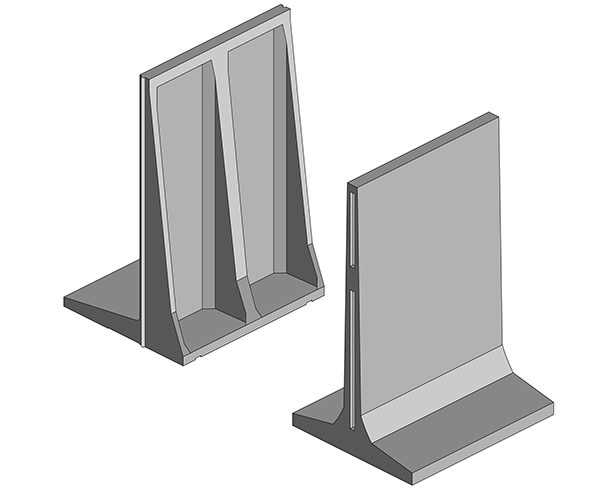

Silos Elements
EDIL Leca’s Horizontal Silos are series productions declared in accordance with the guidelines of the Ministerial Decree of 17/01/2018 registered with the “Presidenza del Consiglio Superiore dei LL.PP.” (Presidency of the Upper Council for Public Works) and manufactured with:
- low water/cement ratio.
- high mechanical strenght.
- high protection of reinforcements.
- extremely low chlorides content.
- high exposure class.
they are subject to checks in accordance with the law and ensure greater durability over time.
Element dividing sizes: cm
| Height | Lenght | Width |
|---|---|---|
| 350 | 225 | 190 |

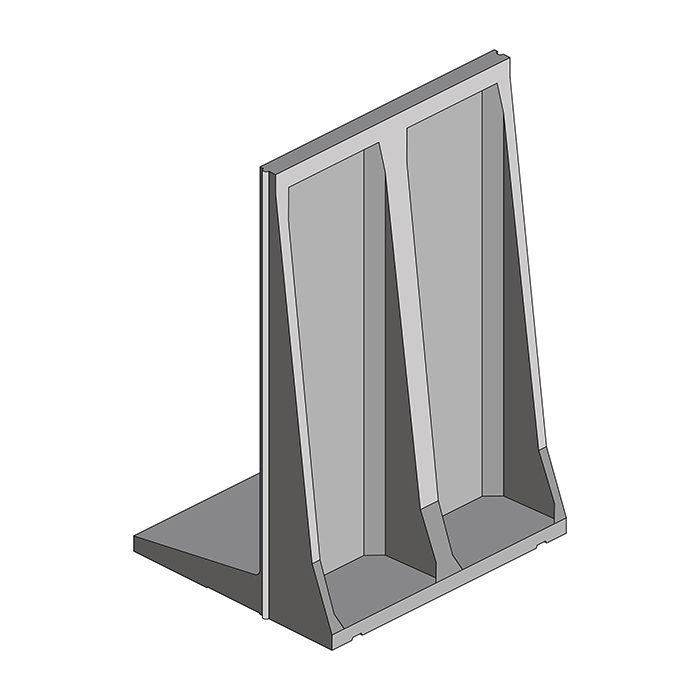

Element perimetral sizes: cm
| Height | Lenght | Width |
|---|---|---|
| 350 | 225 | 190 |
Final element dividing size: cm
| Height | Lenght | Width |
|---|---|---|
| 350 1 | 225 | 190 |
| 284 2 | 225 | 190 |
| 169 3 | 225 | 190 |
1 - Final element T3
2 - Final element T2
3 - Final element T1
Final element perimetral size: cm
| Height | Lenght | Width |
|---|---|---|
| 350 1 | 225 | 190 |
| 269 2 | 225 | 190 |
1 - Final element T3
2 - Final element T2
Technical specifications:
| Load conditions | Normal type | Normal type | Reinforced type | |
|---|---|---|---|---|
| Specific weight | Kg/m3 | 1000 | 1800 | 1800 |
| Internal friction angle | degrees | 35° | 35° | 35° |
| Pile inclination | degrees | 15° | 15° | 15° |
| Overload | Kg/m2 | 1000 | Nullo | 1000 |
Other types:
Perimeter

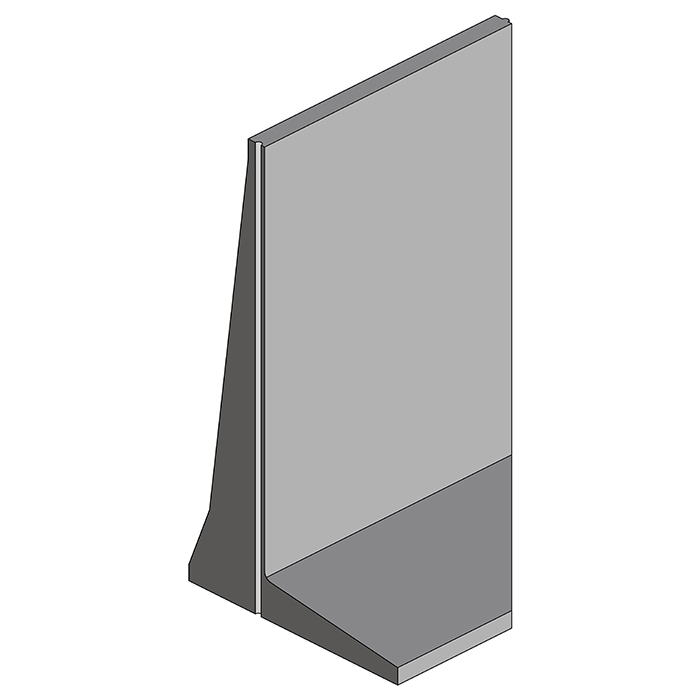

Corner perimeter wall right

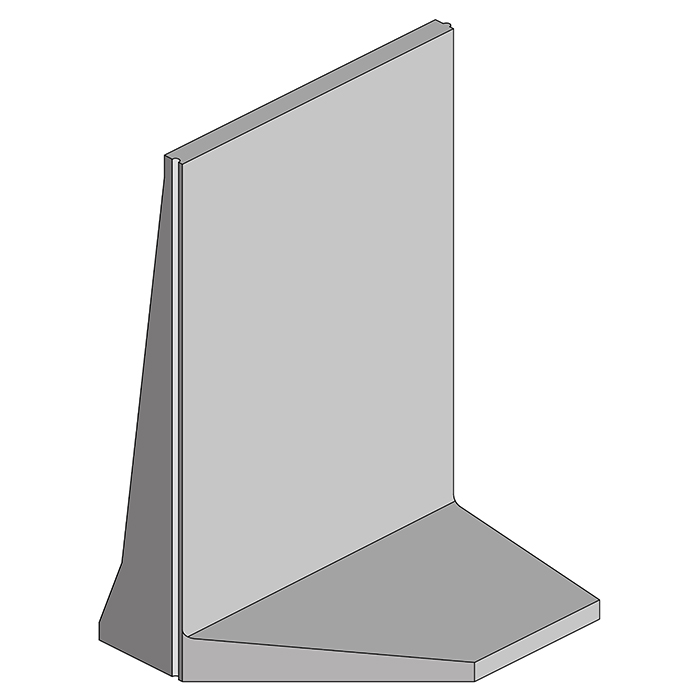

Corner perimeter wall left

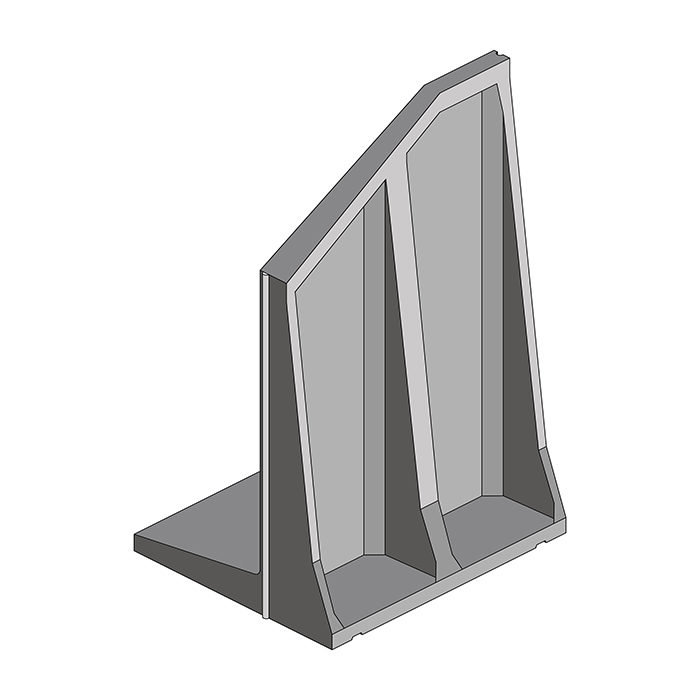

Right final perimeter wall T3

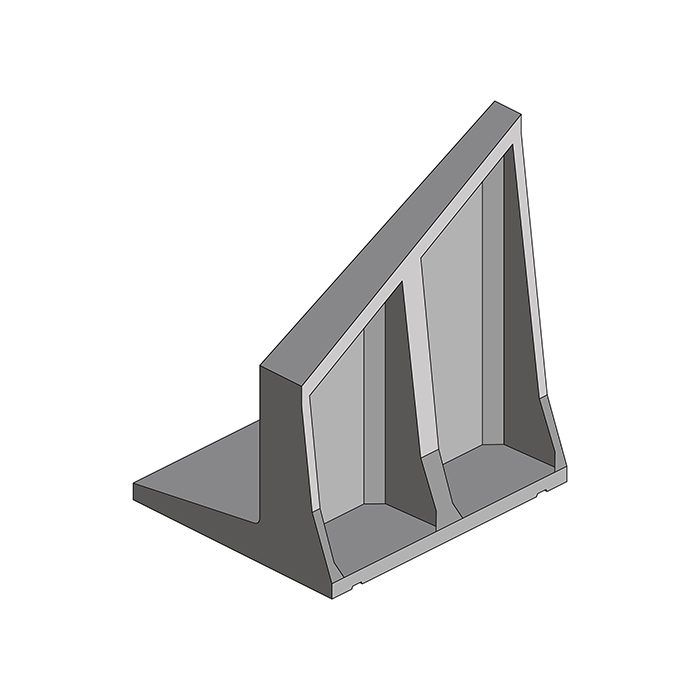

Right final perimeter wall T2

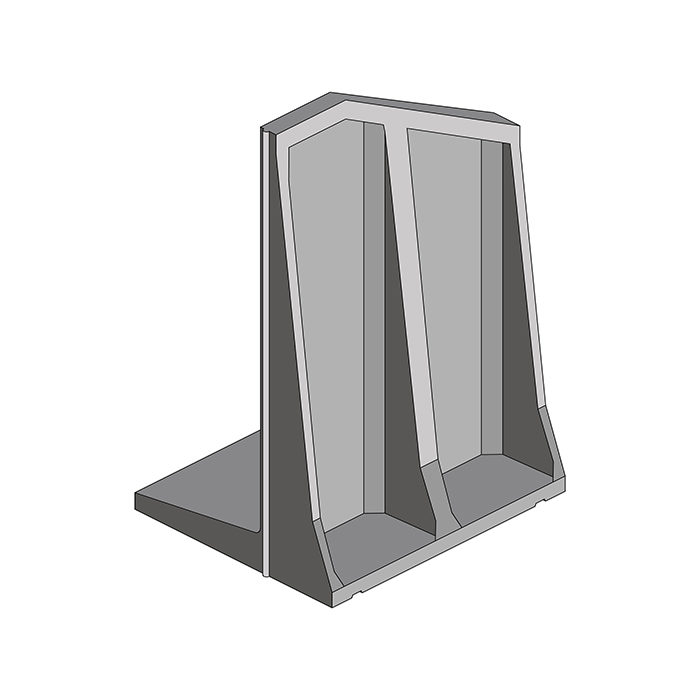

Left final perimeter wall T3

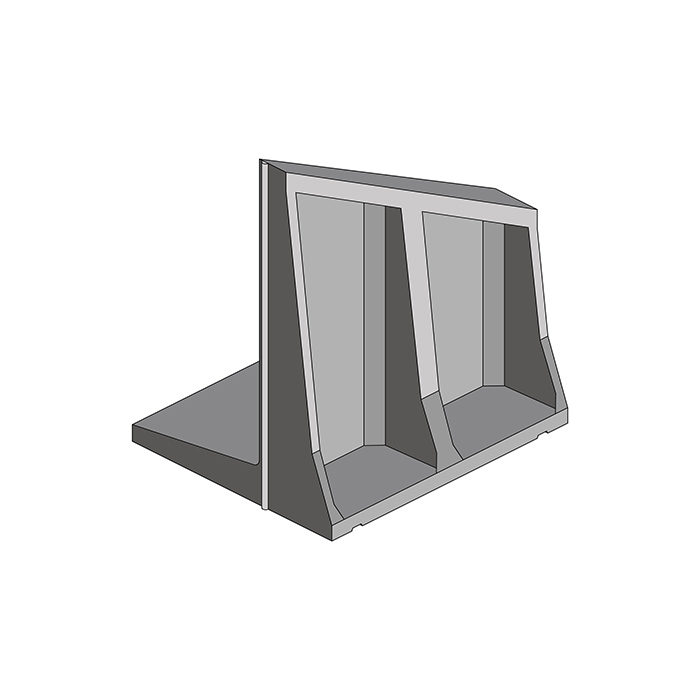

Left final perimeter wall T2

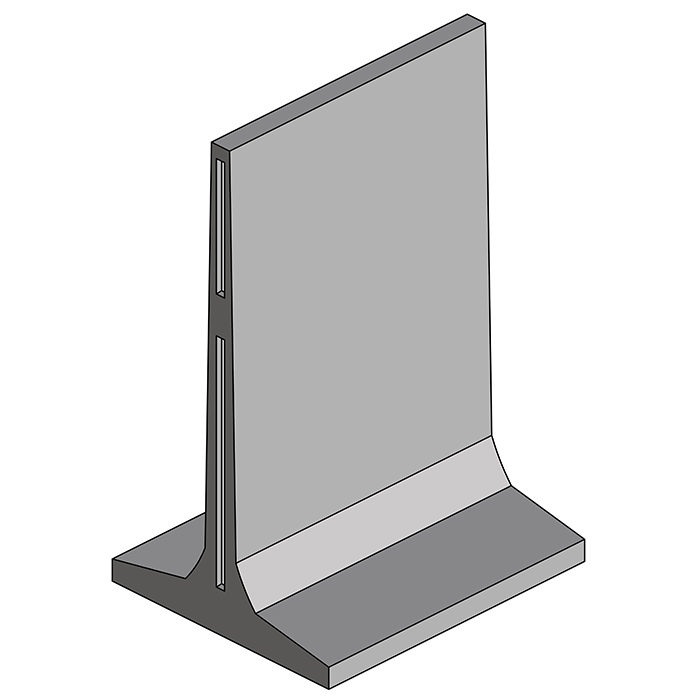

Dividing

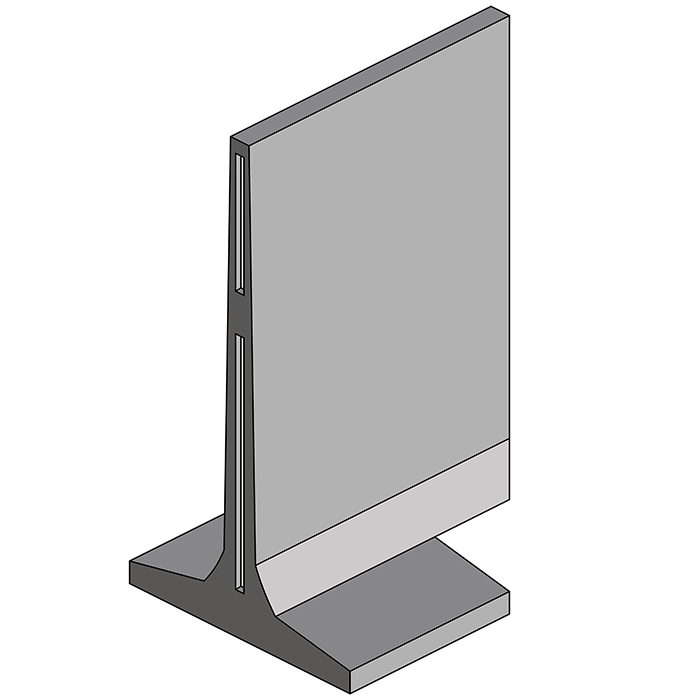

Corner dividing wall

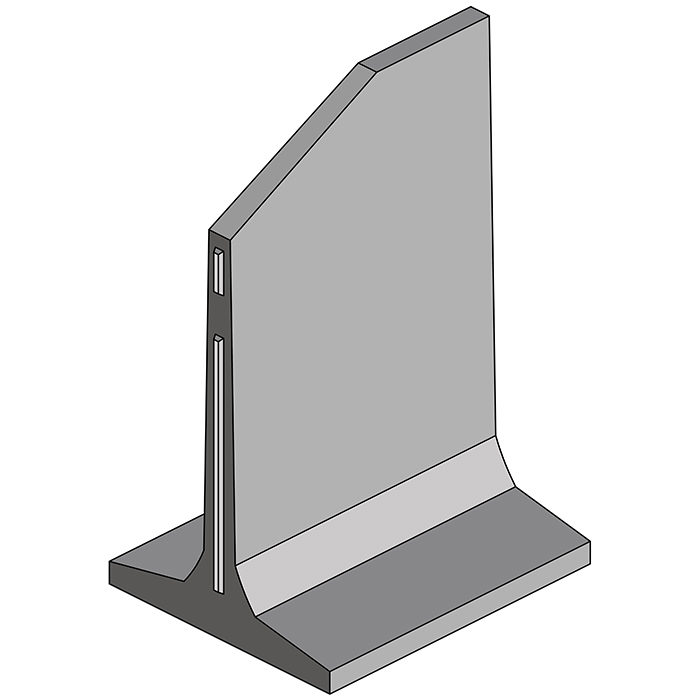

Dividing final wall T3
Dividing final wall T2
