Element H.6,00 m
Silos Elements
EDIL Leca’s Horizontal Silos are series productions declared in accordance with the guidelines of the Ministerial Decree of 17/01/2018 registered with the “Presidenza del Consiglio Superiore dei LL.PP.” (Presidency of the Upper Council for Public Works) and manufactured with:
- low water/cement ratio.
- high mechanical strenght.
- high protection of reinforcements.
- extremely low chlorides content.
- high exposure class.
they are subject to checks in accordance with the law and ensure greater durability over time.

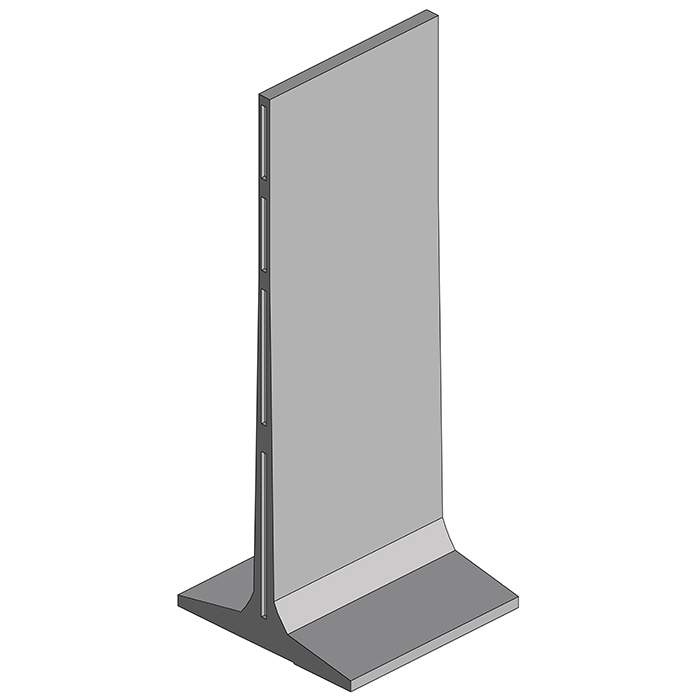

Element dividing sizes: cm
| Height | Lenght | Width |
|---|---|---|
| 600 | 225 | 230 |
| 600 1 | 225 | 160 |
1 - Element with 1 foot

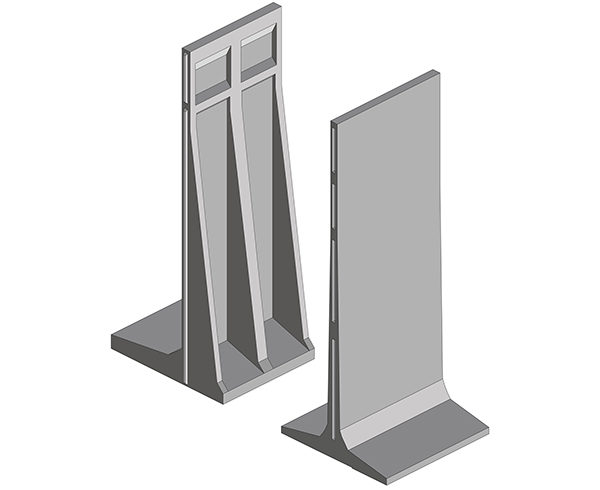

Element perimetral sizes: cm
| Height | Lenght | Width |
|---|---|---|
| 600 | 200 | 245 |
Final element dividing size: cm
| Height | Lenght | Width |
|---|---|---|
| 600 1 | 225 | 230 |
| 516 4 | 225 | 230 |
| 400 3 | 225 | 230 |
| 284 4 | 225 | 230 |
| 169 5 | 225 | 230 |
1 - Final element T5
2 - Final element T4
3 - Final element T3
4 - Final element T2

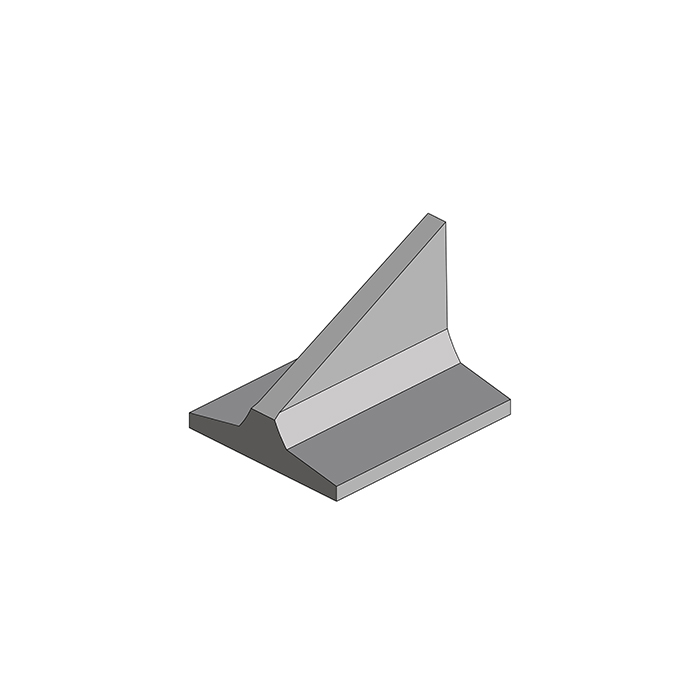

5 - Final element T1
Technical specifications:
| Load conditions | Normal type | Normal type | Reinforced type | |
|---|---|---|---|---|
| Specific weight | Kg/m3 | 1000 | 1800 | 1800 |
| Internal friction angle | degrees | 35° | 35° | 35° |
| Pile inclination | degrees | 15° | 15° | 15° |
| Overload | Kg/m2 | 1000 | null | 1000 |
Other types:

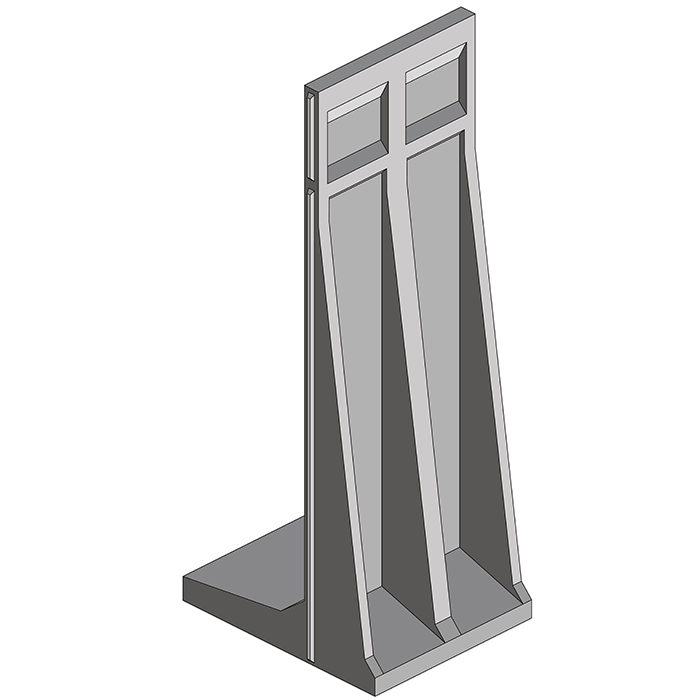

Perimeter

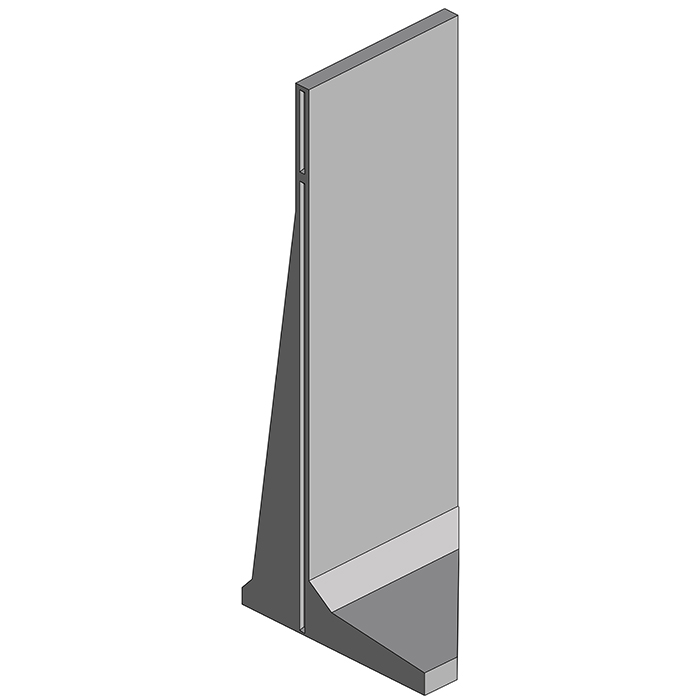

Corner perimeter wall right

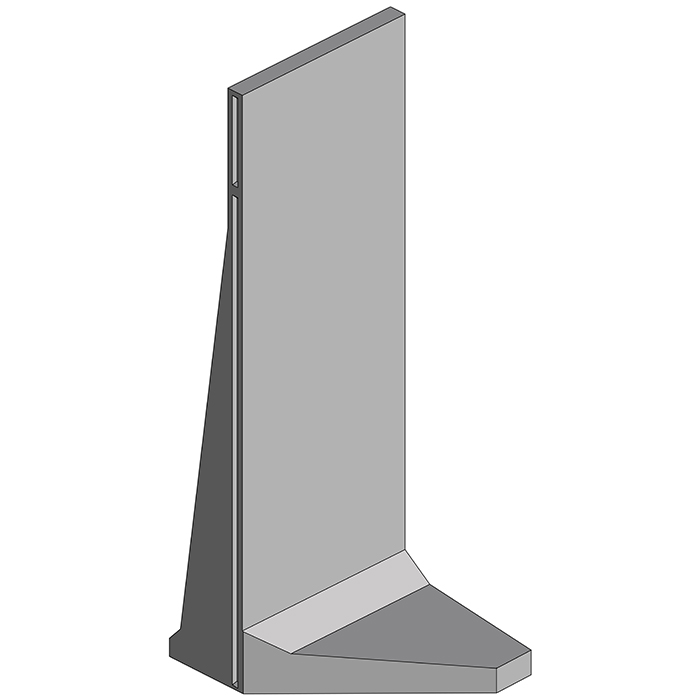

Corner perimeter wall left

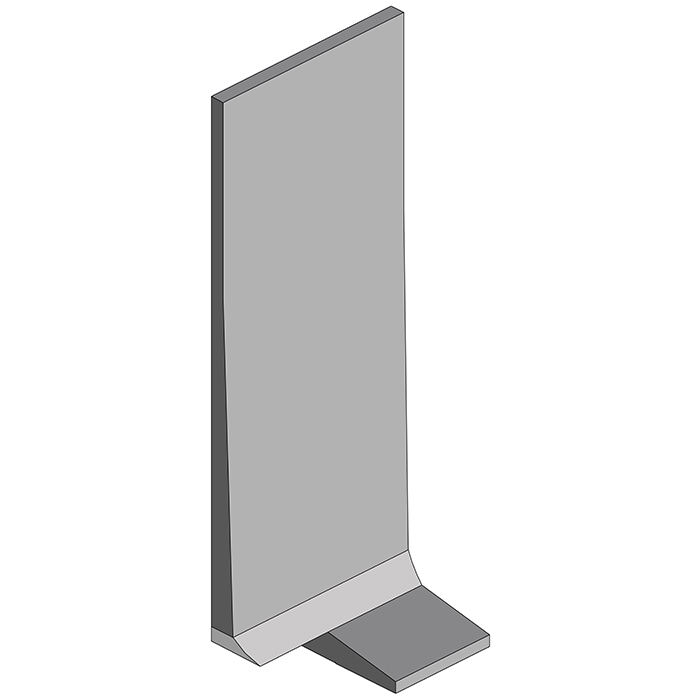

Dividing
Corner dividing wall

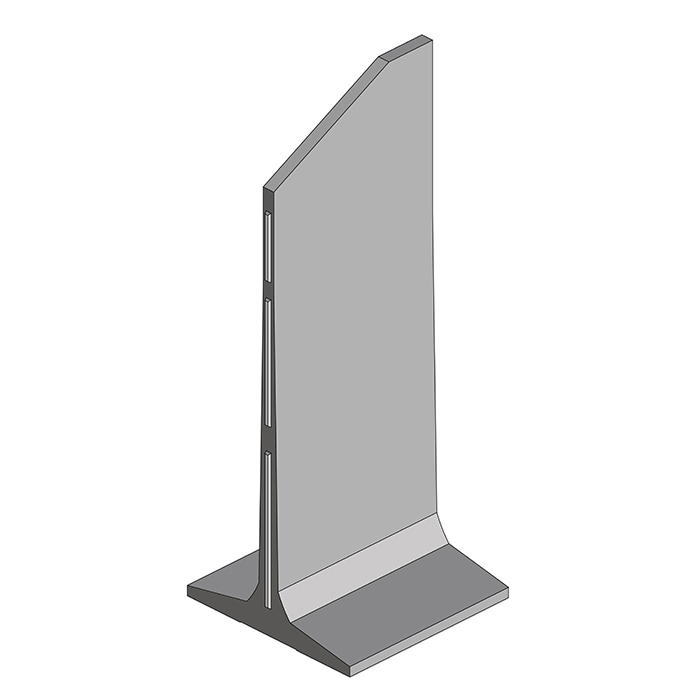

Dividing final wall T5

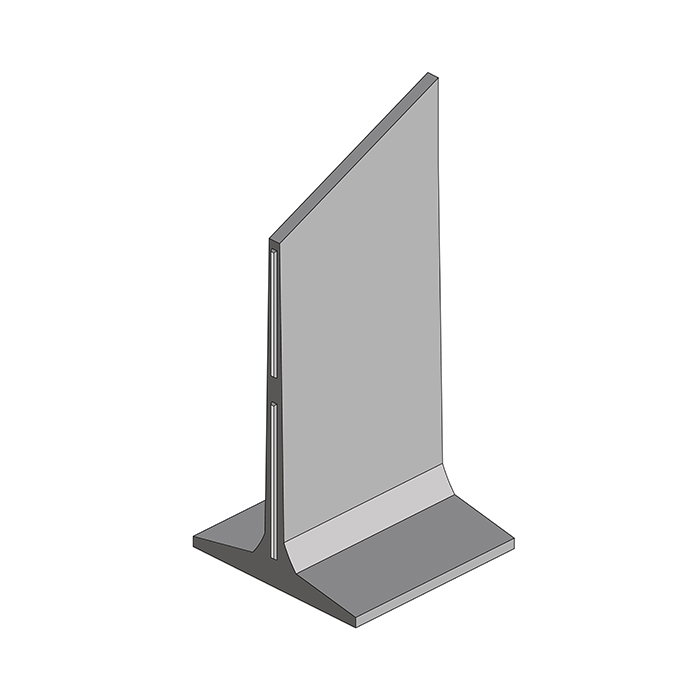

Dividing final wall T4

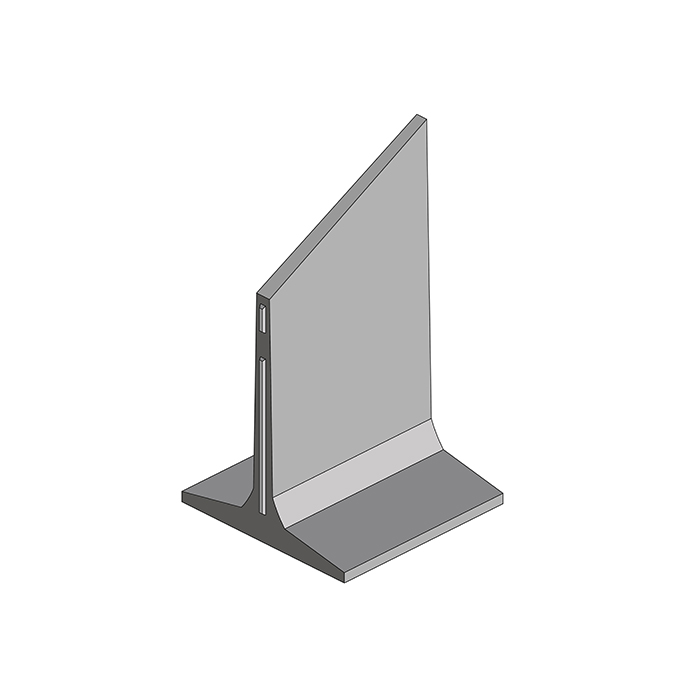

Dividing final wall T3

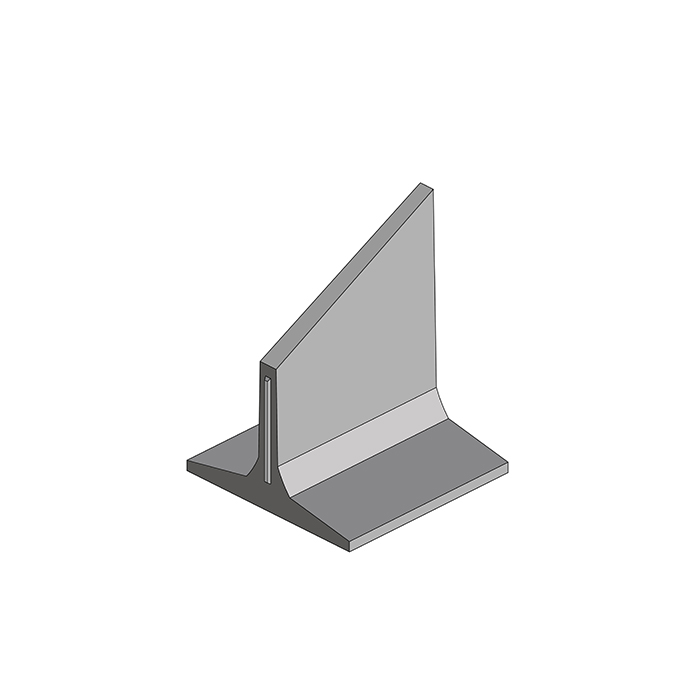

Dividing final wall T2
