Element H.5,00 m
Silos Elements

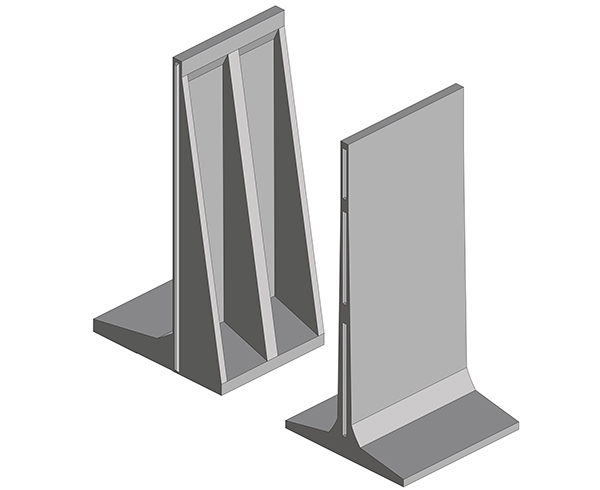

![](https://www.edilleca.com/wp-content/uploads/2020/07/Per_Div_500_Sito_600x490-600x490.jpg)
EDIL Leca’s Horizontal Silos are series productions declared in accordance with the guidelines of the Ministerial Decree of 17/01/2018 registered with the “Presidenza del Consiglio Superiore dei LL.PP.” (Presidency of the Upper Council for Public Works) and manufactured with:
- low water/cement ratio.
- high mechanical strenght.
- high protection of reinforcements.
- extremely low chlorides content.
- high exposure class.
they are subject to checks in accordance with the law and ensure greater durability over time.
Element dividing sizes: cm
Height | Lenght | Width |
---|---|---|
500 | 225 | 230 |
500 | 225 | 160 1 |
1 - Element with 1 foot
Element perimetral sizes: cm
Height | Lenght | Width |
---|---|---|
500 | 200 | 250 |
Final element dividing size: cm
Height | Lenght | Width |
---|---|---|
500 1 | 225 | 230 |
400 2 | 225 | 230 |
284 3 | 225 | 230 |
169 4 | 225 | 230 |
1 - Final element T4
2 - Final element T3
3 - Final element T2
4 - Final element T1
Technical specifications:
Load conditions | Normal type | Normal type | Reinforced type | |
---|---|---|---|---|
Specific weight | Kg/m3 | 1000 | 1800 | 1800 |
Internal friction angle | degrees | 35° | 35° | 35° |
Pile inclination | degrees | 15° | 15° | 15° |
Overload | Kg/m2 | 1000 | nullo | 1000 |
Other types:

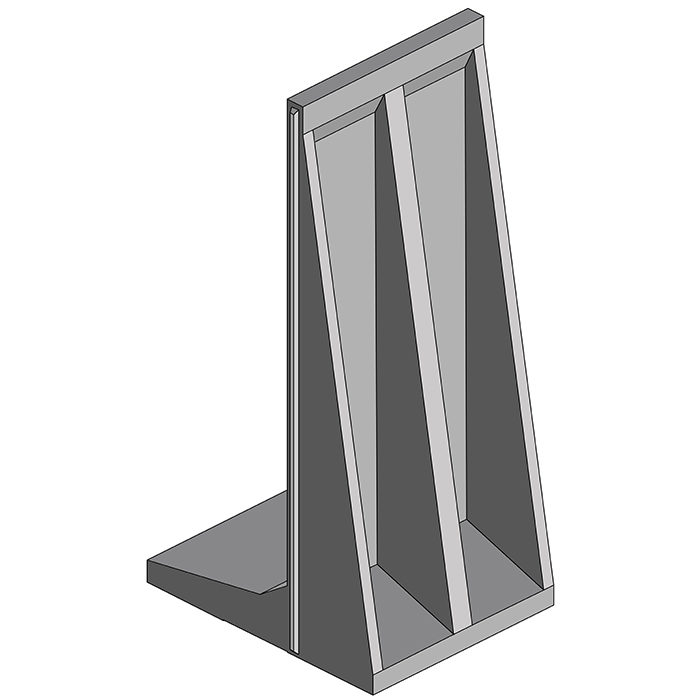

![](https://www.edilleca.com/wp-content/uploads/2020/07/Perimetrale-500x200x250_Sito_700x700-700x700.jpg)
Perimeter

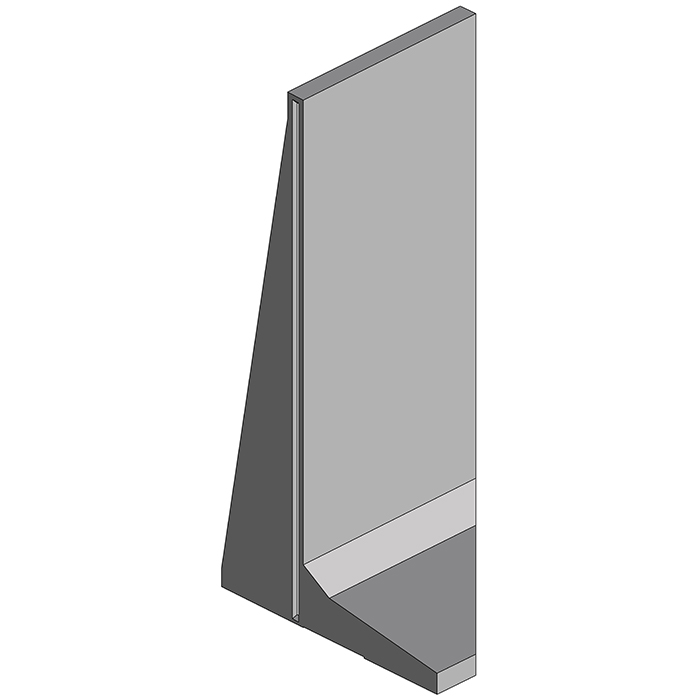

![](https://www.edilleca.com/wp-content/uploads/2019/09/Perimetrale-500x200x250_Angolo_DX_Sito_700x700.jpg)
Corner perimeter wall right

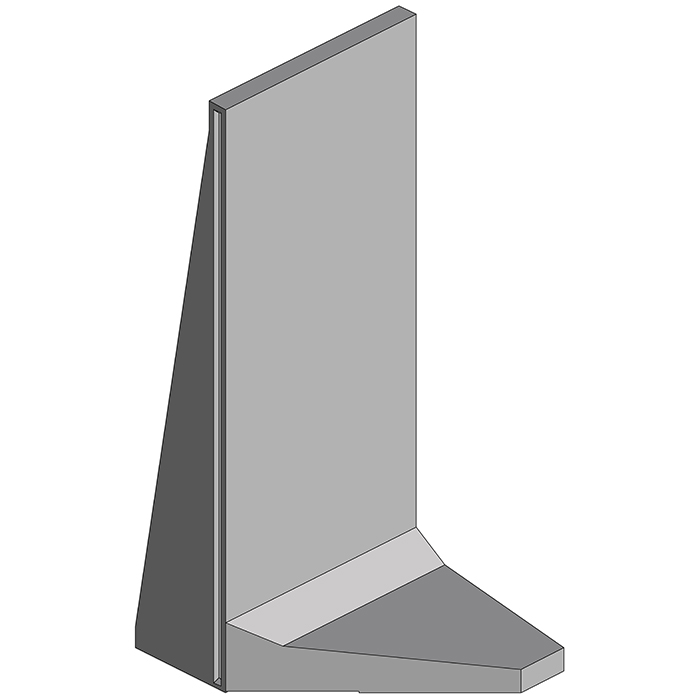

![](https://www.edilleca.com/wp-content/uploads/2019/09/Perimetrale-500x200x250_Angolo_SX_Sito_700x700.jpg)
Corner perimeter wall left

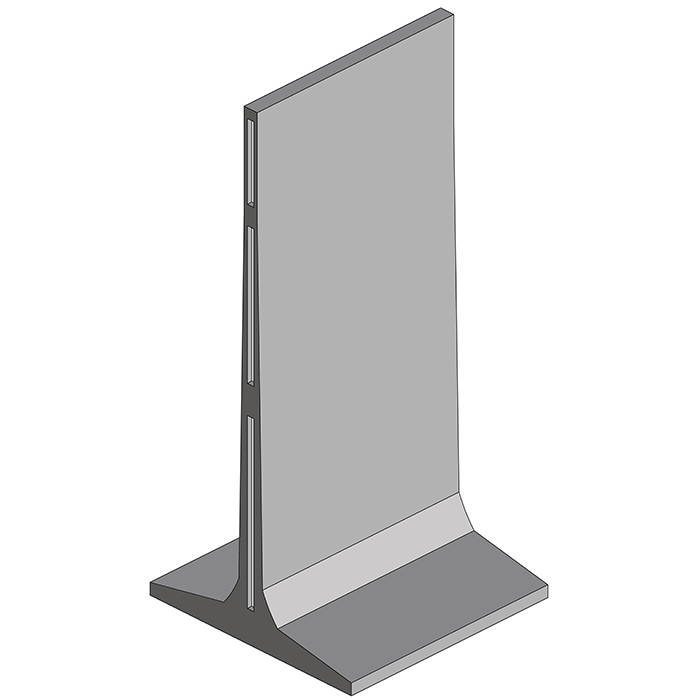

![](https://www.edilleca.com/wp-content/uploads/2019/08/Divisorio_500x225x230_Sito_700x700.jpg)
Dividing

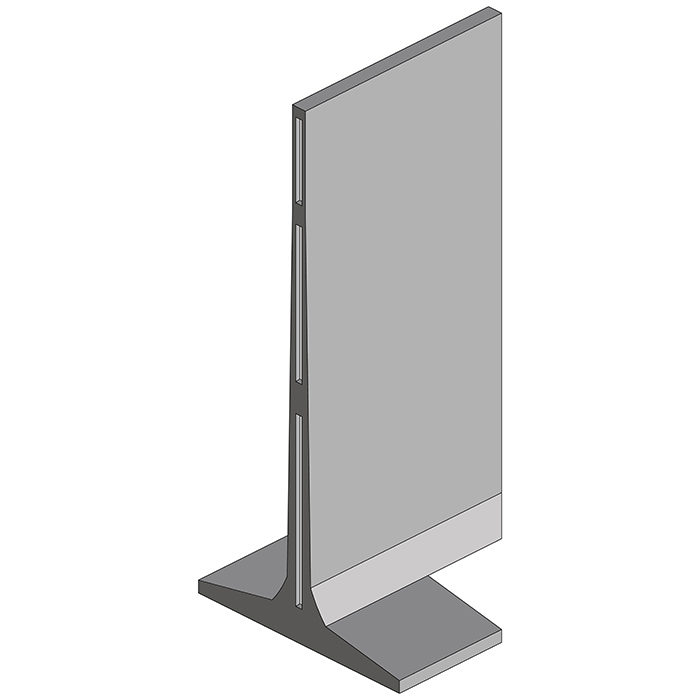

![](https://www.edilleca.com/wp-content/uploads/2020/07/Div_500x225x230_Ang_Inn_Div_500x230_Sito_700x700-700x700.jpg)
Corner dividing wall
![](https://www.edilleca.com/wp-content/uploads/2019/06/Divisorio_500x225x230_Term_T4_Sito_700x700.jpg)

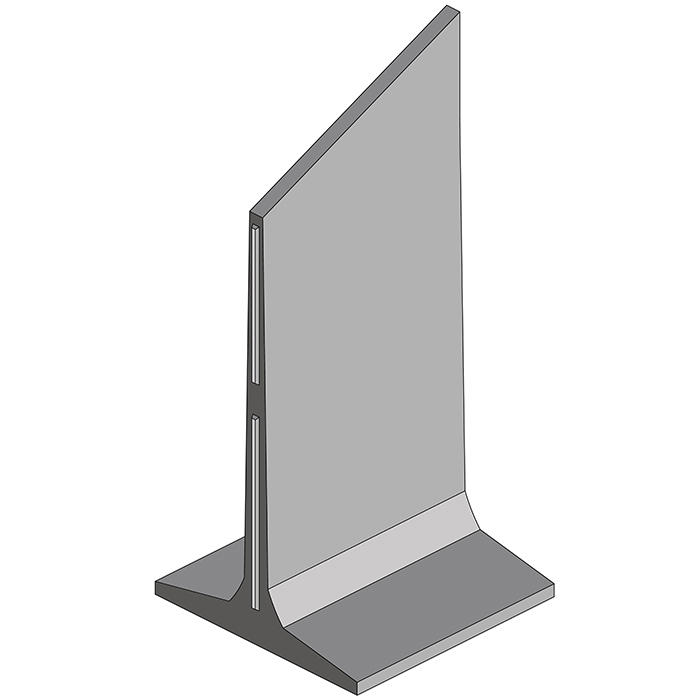

Dividing final wall T4

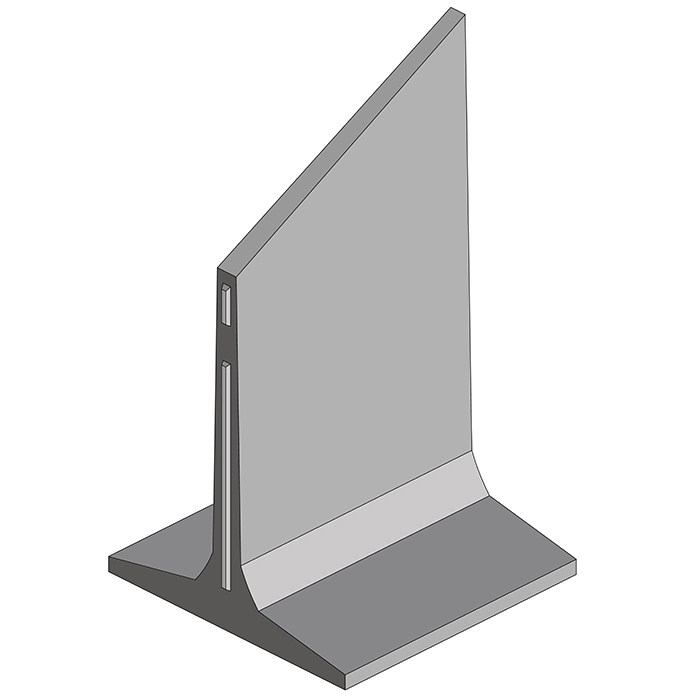

![](https://www.edilleca.com/wp-content/uploads/2019/06/Divisorio-400x225x230_Term_T3_Sito_700x700.jpg)
Dividing final wall T3

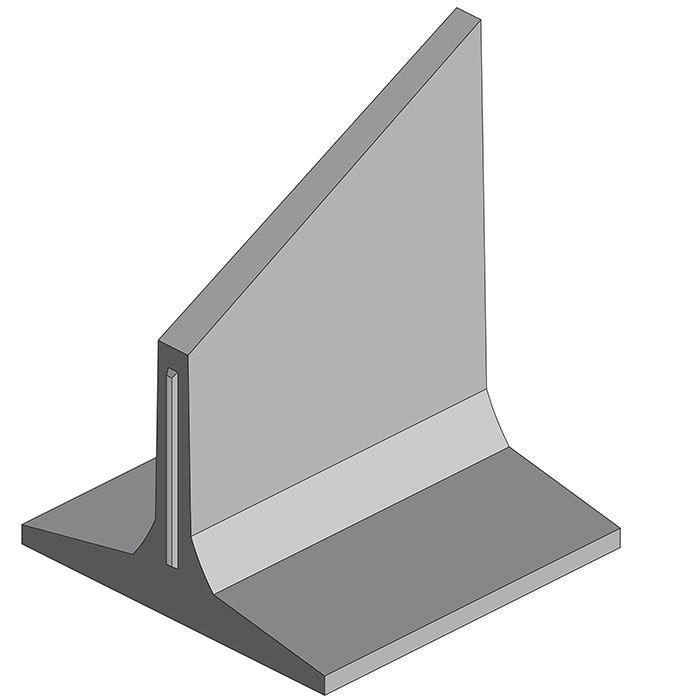

![](https://www.edilleca.com/wp-content/uploads/2019/06/Divisorio-400x225x230_Term_T2_Sito_700x700.jpg)
Dividing final wall T2
![](https://www.edilleca.com/wp-content/uploads/2019/10/Divisorio-350x225x190_Terminale_T1_Sito_700x700.jpg)
