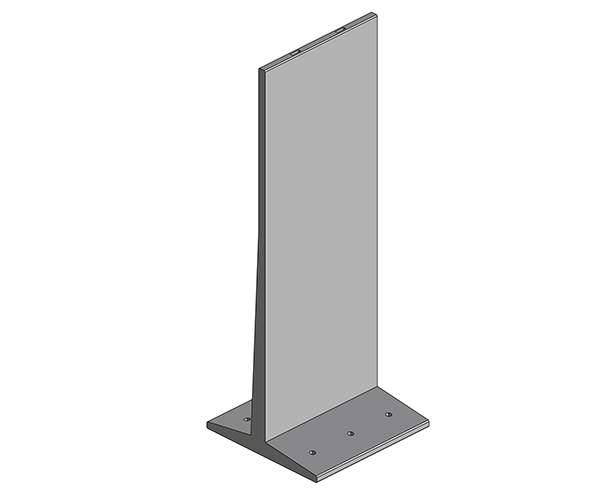

Element H.7,00 m
Silos Elements
EDIL Leca’s Horizontal Silos are series productions declared in accordance with the guidelines of the Ministerial Decree of 17/01/2018 registered with the “Presidenza del Consiglio Superiore dei LL.PP.” (Presidency of the Upper Council for Public Works) and manufactured with:
- low water/cement ratio.
- high mechanical strenght.
- high protection of reinforcements.
- extremely low chlorides content.
- high exposure class.
they are subject to checks in accordance with the law and ensure greater durability over time.
Element dividing sizes: cm
| Height | Lenght | Width |
|---|---|---|
| 700 | 250 | 245 |
Technical specifications:
| Load conditions | Normal type | Normal type | Reinforced type | |
|---|---|---|---|---|
| Specific weight | Kg/m3 | 1000 | 1800 | 1800 |
| Internal friction angle | degrees | 35° | 35° | 35° |
| Pile inclination | degrees | 15° | 15° | 15° |
| Overload | Kg/m2 | 1000 | null | 1000 |
